Composite Panel Systems
A composite metal panel system offers building owners and architects the perfect balance of quality, cost and performance. With both rainscreen and wet joint composite panel systems offered among our expansive product line, Americlad® has the durable yet affordable wall system solution you’ve been looking for.
TESTED & APPROVED FOR ULTIMATE PERFORMANCE
Americlad® rainscreen systems are dry joint systems that are offered in a back ventilated or a pressure equalized configuration. These systems are designed to offer superior water control during weather events and manage any moisture that may penetrate the wall system. A weather barrier is required behind the composite panels to keep the building free of water damage.
Our barrier wall systems are a more traditional panel system that includes a mechanically-fastened clip attachment. These systems have exposed caulking at the panel joints, with back routed sealed corners for weatherproofing.
Aesthetics
Our composite systems can provide a sleek, contemporary exterior profile. They are available in a range of metals, colors, and designs.
Installation
The AC-1300’s patented sliding clip design streamlines the installation process for savings of both time and money.
Durable
Fire, wind, rain and beyond: Whatever elements your building needs to withstand, there’s an Americlad® composite system that can weather them.
Product Features
Sliding Clip Design
Tested & Approved
Material Options
Americlad’s composite panel systems are manufactured from Aluminum Composite Material (ACM) or Metal Composite Material (MCM). Natural metal finishes, including zinc, brushed aluminum, copper and stainless steel are available.
Click to enlarge

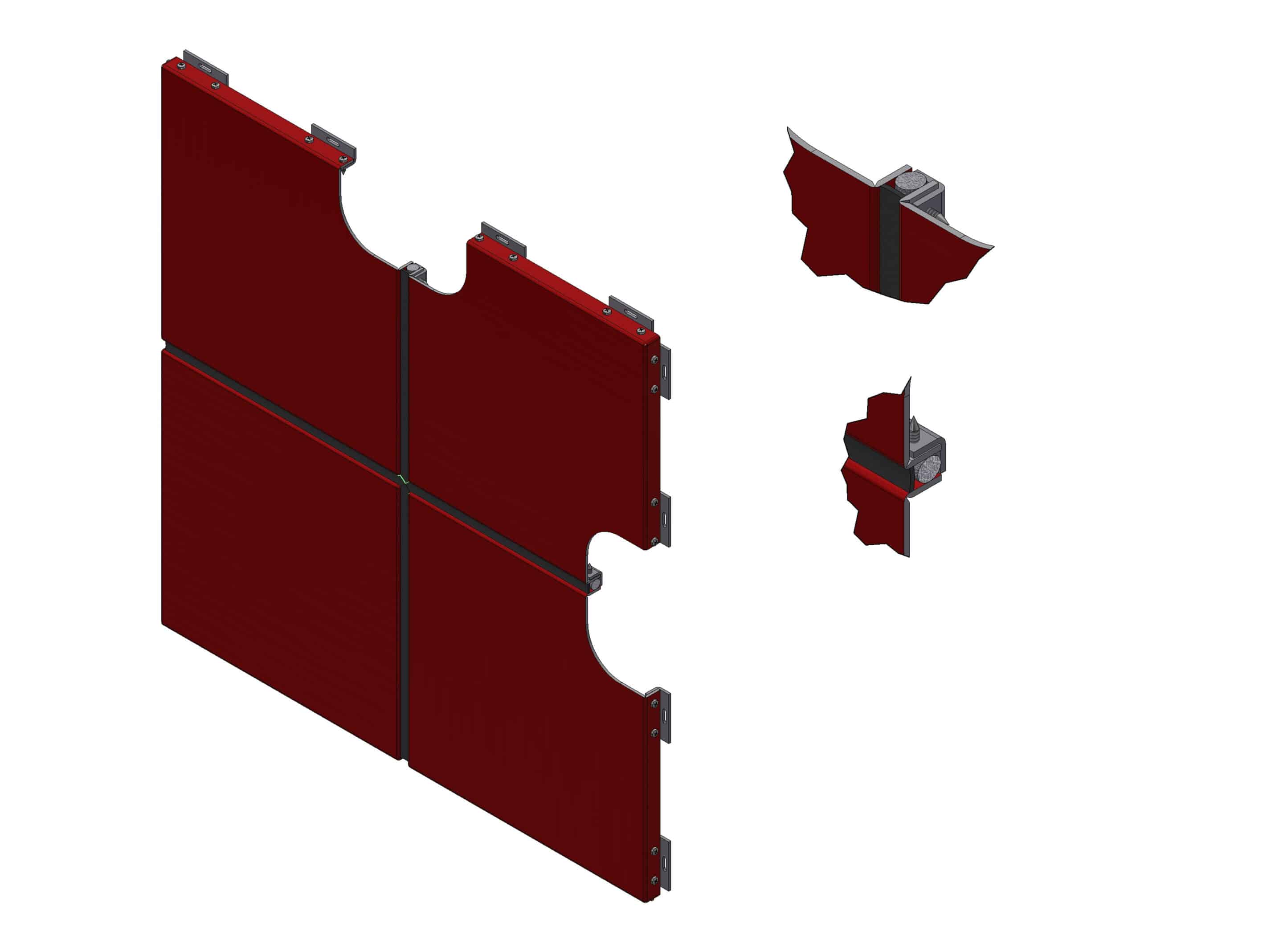

AC-1000 Wet Joint
Product Description
The Americlad® AC-1000 Composite Panel System is a barrier wall system manufactured from Aluminum Composite Material (ACM) or Metal Composite Material (MCM). The system features a route-and-return fabrication method.
Americlad® AC-1000 system features include:
- 9Formed and return flange and a slotted clip to accommodate expansion and contraction
- 9Wide variety of standard and custom colors available
- 9Available in natural metals, including zinc, brushed aluminum, copper & stainless steel
- 9Joints utilize a traditional backer rod and caulk system, which are field applied for a complete, sealed installation
- 9ASTM 283, ASTM 330 and ASTM 331
Click to enlarge

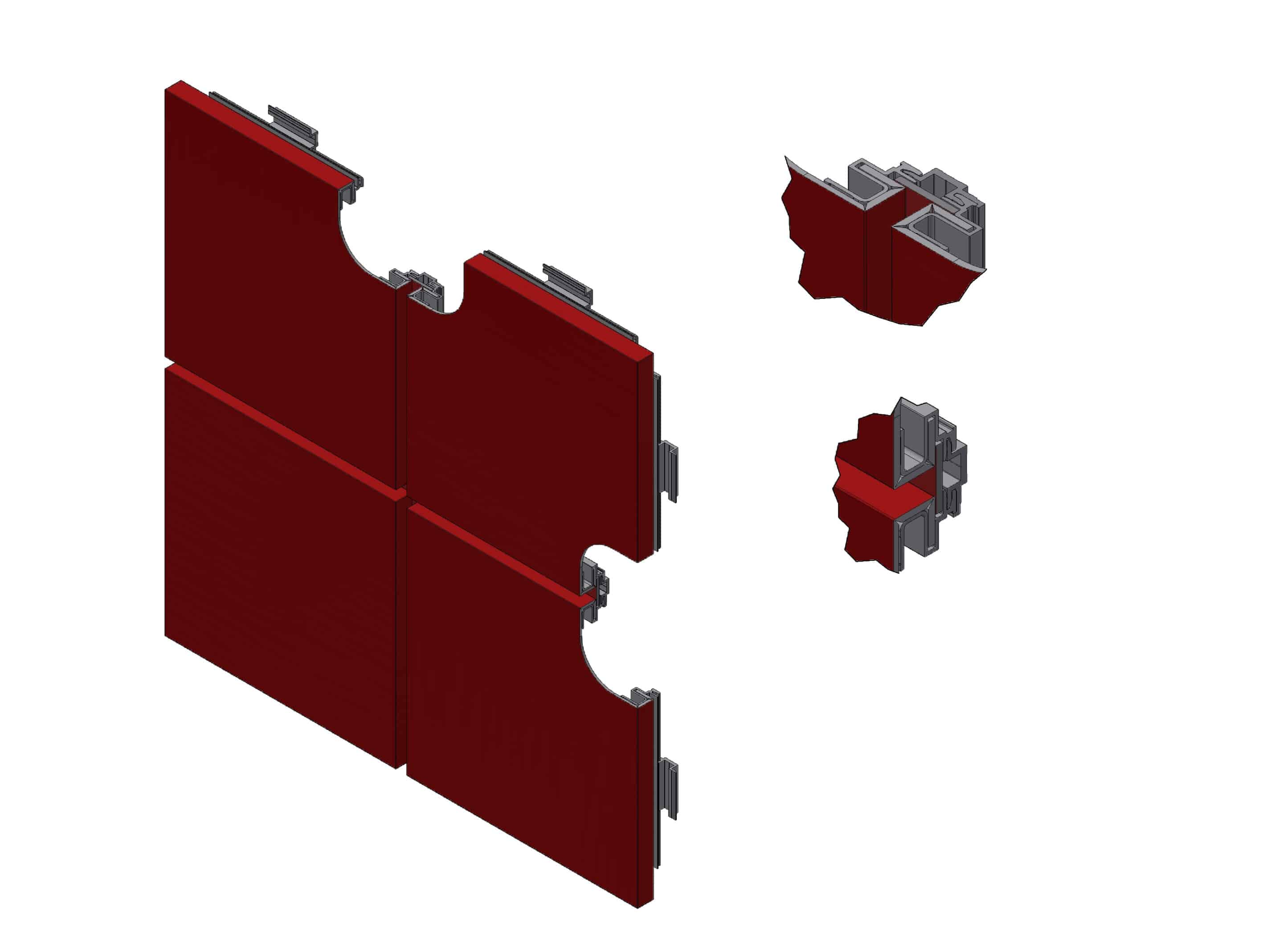

AC-1200
Product Description
NFPA 285 Tested & Approved
The Americlad® AC-1200 Composite Dry Joint Panel System is a rainscreen panel system manufactured from Aluminum Composite Material (ACM) or Metal Composite Material (MCM).
With the absence of fasteners penetrating individual panels, this cladding system out-performs others in AAMA 509 and ASTM testing. Other features of the AC-1200 include:
Americlad® AC-1200 system features include:
- 9Dry-Look™ appearance with no exposed fasteners or caulking
- 9Back Ventilated System
- 9Wide variety of standard and custom colors available
- 9Available in natural metals, including zinc, brushed aluminum, copper & stainless steel
- 9Perimeter extrusion and clips system
- 9Withstood winds in excess of 300 MPH under laboratory conditions
- 9NFPA 285 tested and approved
- 9ASTM 283, ASTM 330, ASTM 331, AAMA 501.1 and AAMA 509
Click to enlarge

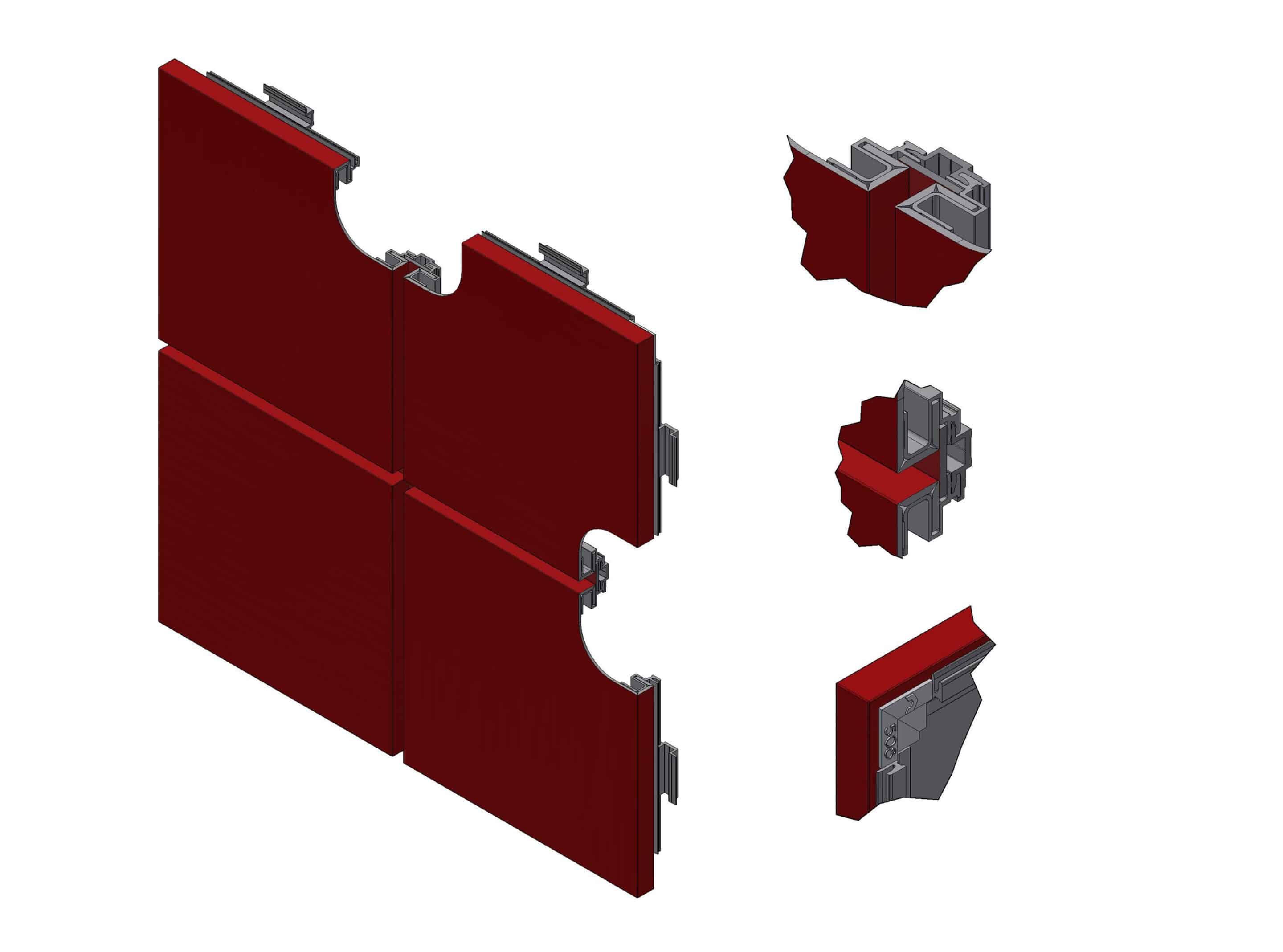

AC-1200 PE
Product Description
NFPA 285 Tested & Approved
The Americlad® AC-1200 PE Composite Dry Joint Panel System is a rainscreen panel solution crafted from either Aluminum Composite Material (ACM) or Metal Composite Material (MCM), offered in a Pressure Equalized option.
Americlad® AC-1200 PE system features include:
- 9Dry-Look™ appearance with no exposed fasteners or caulking
- 9Pressure Equalized System
- 9Wide variety of standard and custom colors available
- 9Available in natural metals, including zinc, brushed aluminum, copper & stainless steel
- 9Perimeter extrusion and clips system
- 9Withstood winds in excess of 300 MPH under laboratory conditions
- 9NFPA 285 tested and approved
- 9ASTM 283, ASTM 330, ASTM 331, AAMA 501.1 and AAMA 508
Click to enlarge

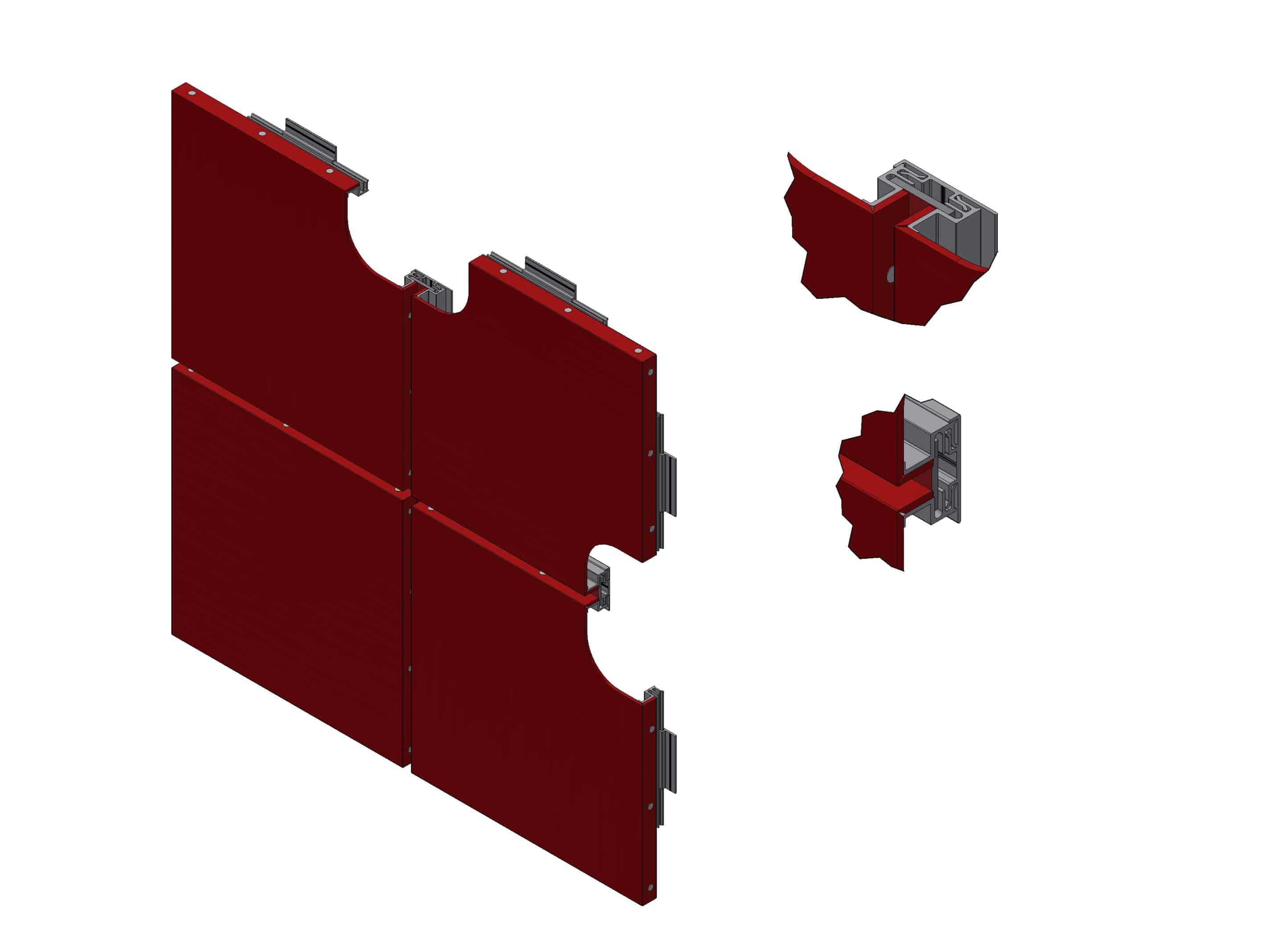

AC-1200 BV
Product Description
Americlad® AC-1200 BV Back Ventilated Panel System is manufactured from Aluminum Composite Material (ACM) or Metal Composite Material (MCM).
Fully tested with AAMA 509, ASTM E283, ASTM E330, and ASM E3331. Our caulk-free design offers a crisp, clean, and contemporary look at an affordable price point.
Americlad® AC-1200 BV system features include:
- 9Wide variety of standard and custom colors available
- 9Available in zinc, brushed aluminum, copper and stainless steel
- 9Perimeter extrusion and clips system
- 9Budget-friendly, high-quality cladding option
- 9ASTM 283, ASTM 330, ASTM 331, AAMA 501.1 and AAMA 509
Click to enlarge

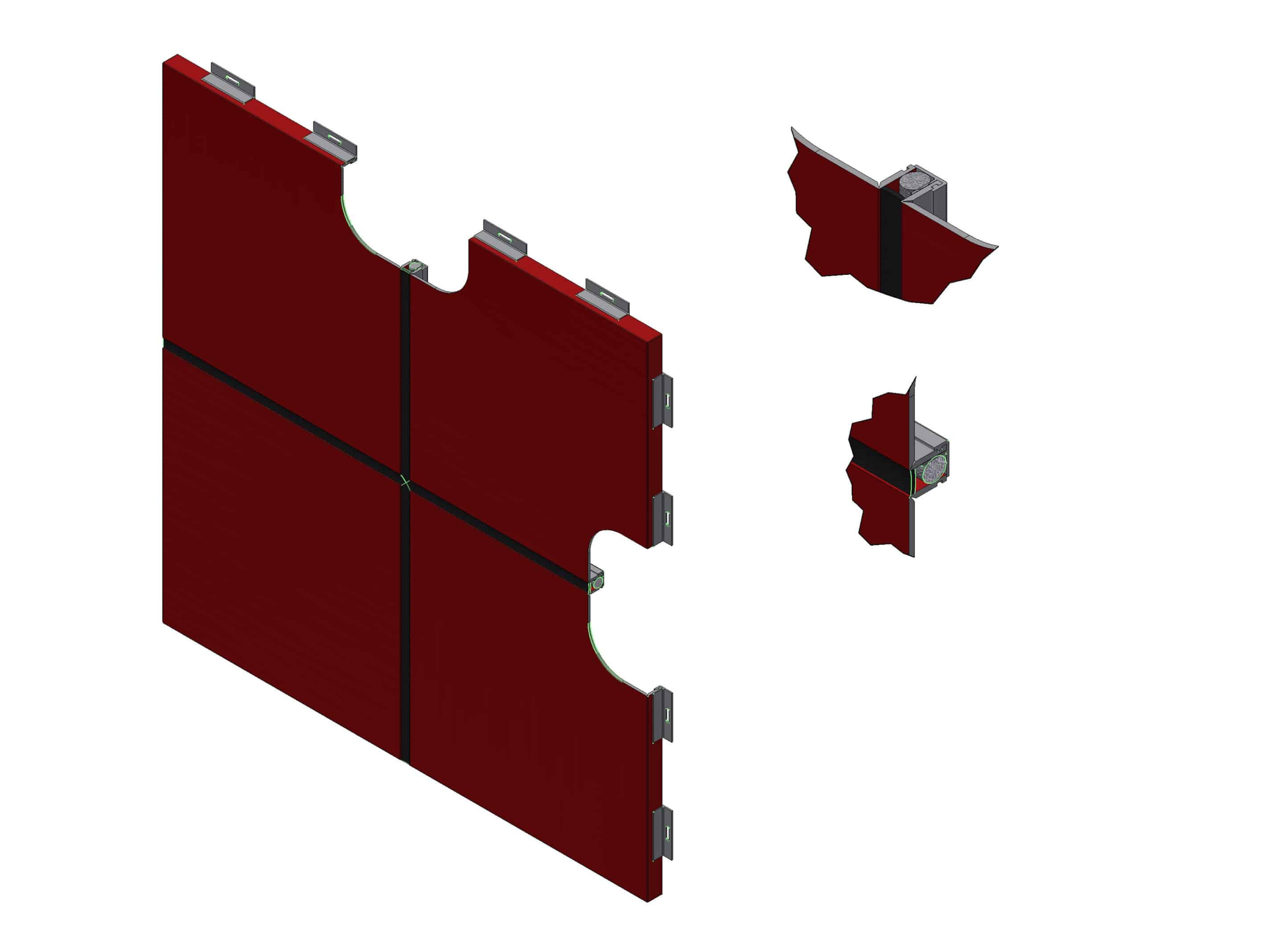

AC-1300
Utilizing Our Patented Sliding Clip
The Americlad® AC-1300 Composite Panel System with our Patented Sliding Clip is a barrier wall system manufactured from Aluminum Composite Material (ACM) or Metal Composite Material (MCM). The system features a route-and-return fabrication method.
Americlad® AC-1300 system features include:
- 9Wide variety of standard and custom colors available
- 9Available in zinc, brushed aluminum, copper and stainless steel
- 9Joints utilize a traditional backer rod and caulk system, which are field-applied for a complete, sealed installation
- 9ASTM 283, ASTM 330 and ASTM 331
- 9Track routed into the panel to accommodate our exclusive, patented sliding clip. Benefits of our sliding clip include:
- 5Clip easily slides into location for fastening back to the wall structure
- 5Accommodates expansion and contraction by requiring only one clip be fastened to each panel, allowing the others to slide freely
- 5Saves time and money on installation by eliminating the need to line up, clamp down, and fasten every clip on the panel; simply slide the clip down the edge of the panel to secure
