Column Cover Systems
Whether plate or composite, radiused, rectangular, or oblong, Americlad’s Column Cover Systems can help you enclose unsightly columns and meet even the most challenging design requirements.
CUSTOMIZABLE COLUMN COVERS
Don’t let unattractive structural columns affect the overall aesthetic of your carefully considered design. Americlad’s Column Cover Systems can be manufactured in a variety of metals and composite materials, with many finishes to choose from. Select one of our several standard designs, or easily customize your column covers to meet your unique needs!
Sustainable
Column covers offer outstanding longevity and can be manufactured with high-quality recycled materials, making them a long-term, sustainable solution.
Installation
Americlad prioritizes ease of installation across our expansive product lines. Our Column Cover Systems are simple to install in a variety of column, tube, and beam enclosure applications.
Durability
Americlad Column Covers can be manufactured out of solid aluminum plate, which is the preferred material choice for high traffic areas where dent-resistance and durability is key.
Product Features
Reveal & Hairline Joints
Reveal joint column covers provide an option to have a filler channel in the vertical condition. Hairline joint column covers feature a unique key slot system for ease of installation.
Dimensions
Americlad has the capability to manufacture column cover systems with a radius as small as 5.5” in a single height up to 16 ft. tall.
Material Options
Material options for Americlad Column Cover Systems include aluminum plate, metal composite materials (MCM), stainless steel, and copper. Custom finish colors are available for aluminum column covers with either Kynar 500®/Hylar 5000® painted finishes or anodizing.
Aluminum Plate Column Covers
Click to enlarge
Click to enlarge

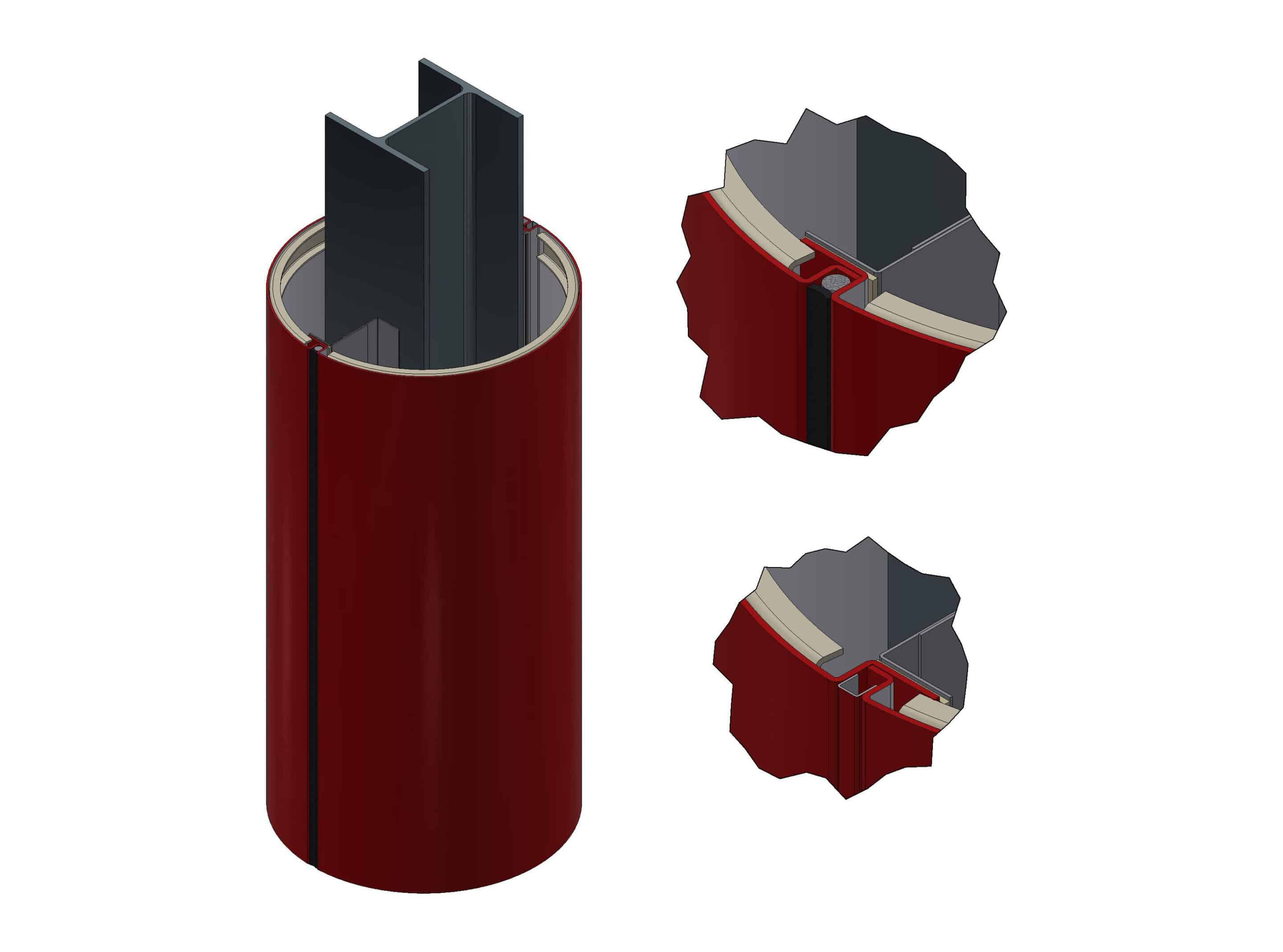

AC-10P
Reveal Joint System

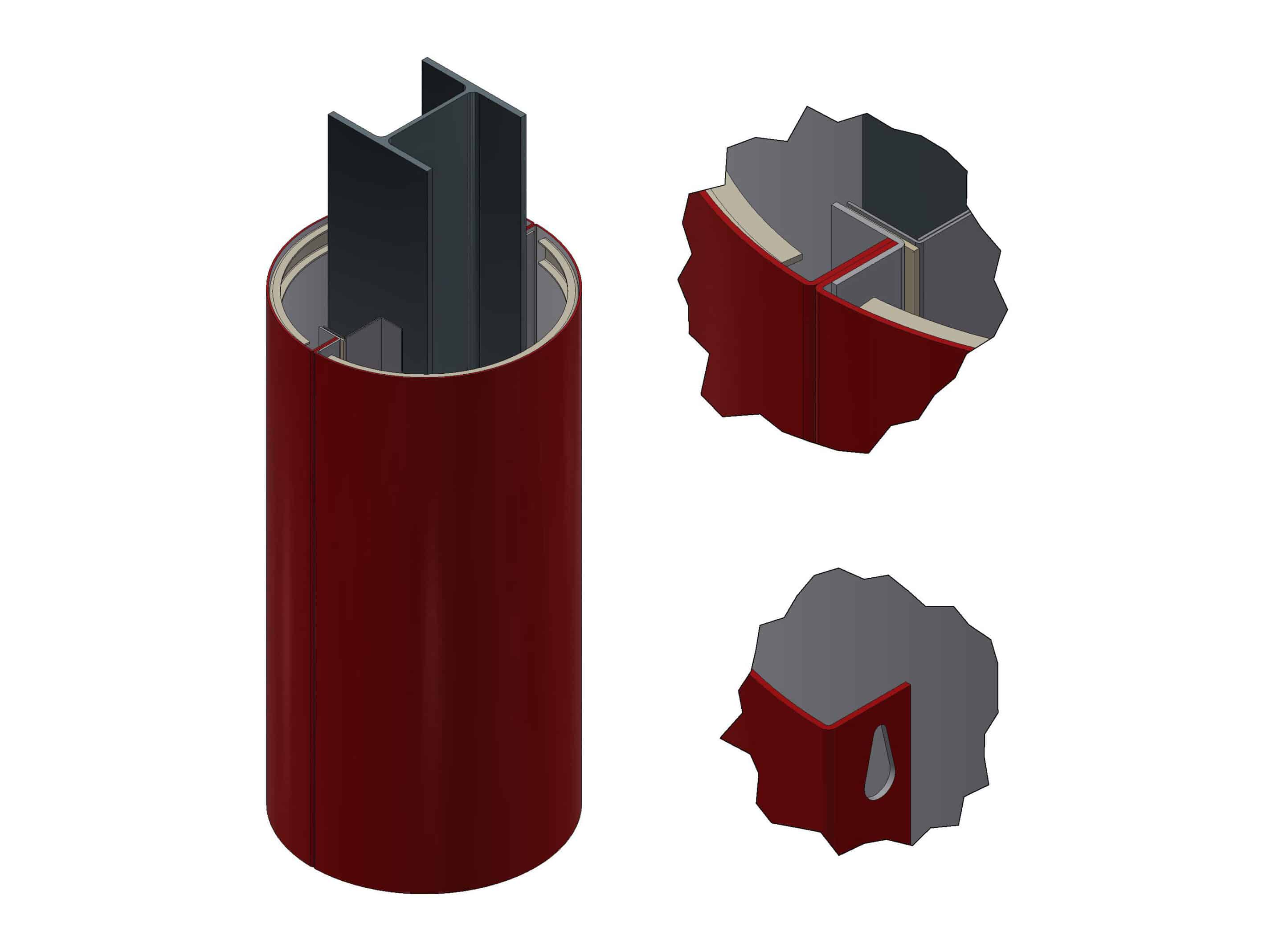

AC-20P
Hairline Joint System
Product Description
Americlad Aluminum Plate Column Cover Systems are designed to conceal columns and beams while providing a sleek, finished look. Solid aluminum plate is an ideal material choice for use in high-traffic areas, and the preferred material when custom color jobs require a post spray application.
- 9Wide variety of standard and custom colors available
- 9Formed and return flange and a slotted clip to accommodate expansion and contraction
- 9Superior flatness
- 9Extreme durability, great for high traffic areas
- 9Available in natural metals, including brushed aluminum & copper
- 9AC-10P joints utilize a traditional backer rod and caulk system, which are field applied for a complete and sealed installation
AC-10P Documents
AC-20P Documents
Aluminum Composite Column Covers
Click to enlarge
Click to enlarge

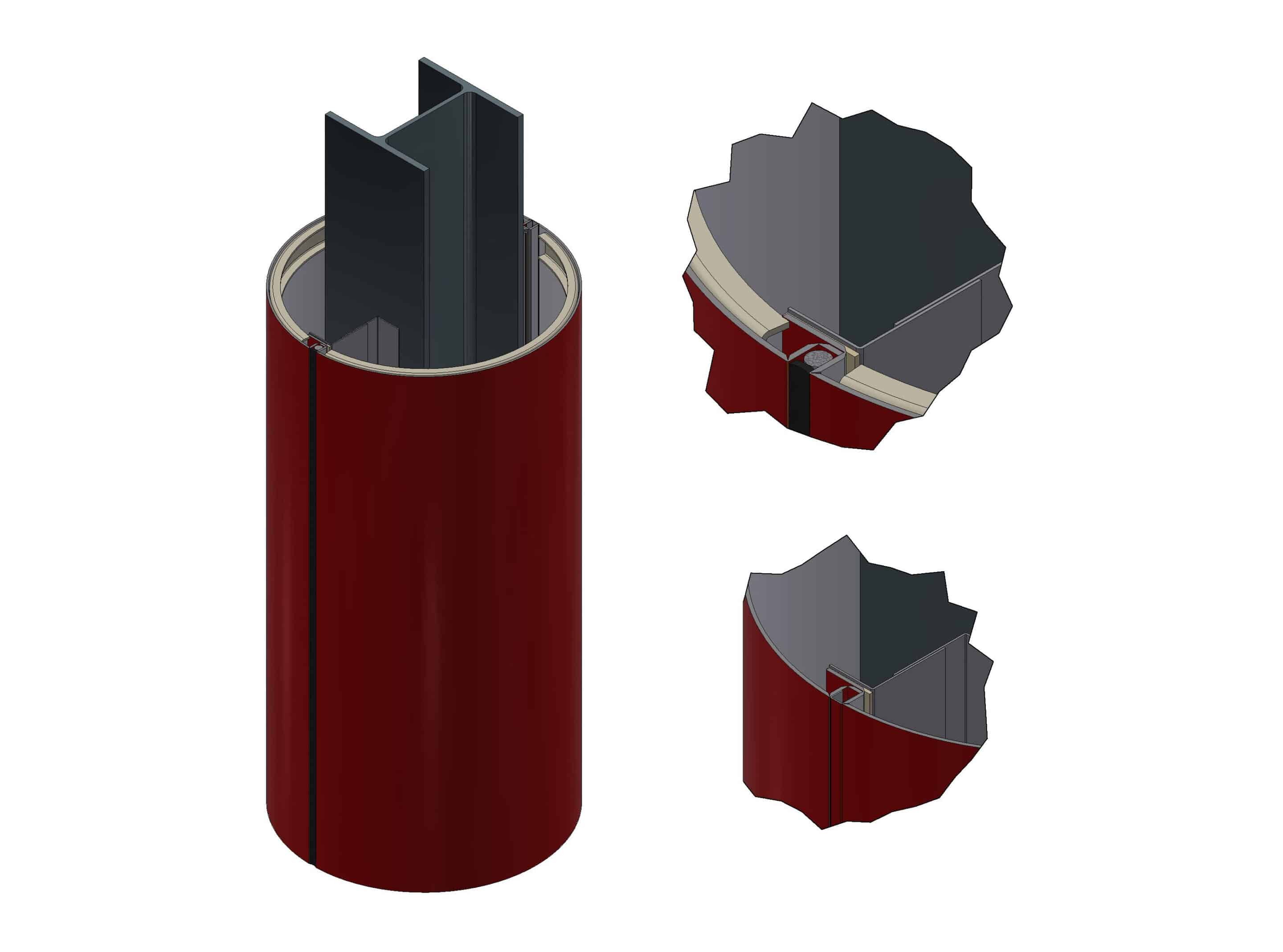

AC-10C
Reveal Joint System

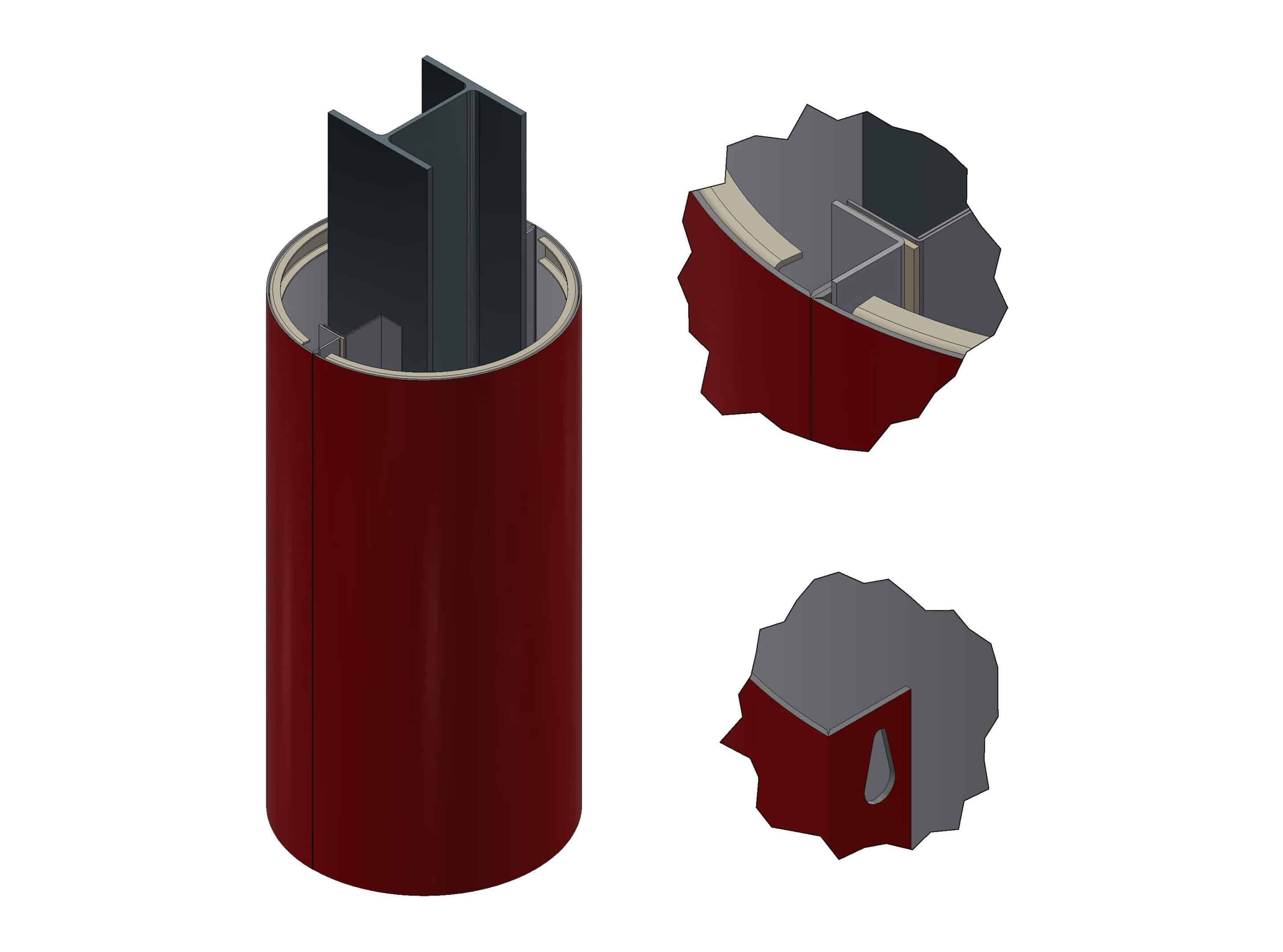

AC-20C
Hairline Joint System
Product Description
Americlad Aluminum Composite Column Covers provide the same modern and finished appearance as our solid aluminum plate column covers. Composite column covers are manufactured from metal composite material (MCM).
- 9Back routed corners for crisp, sharp edges
- 9Formed and return flange and a slotted clip to accommodate expansion and contraction
- 9Wide variety of standard and custom colors available
- 9Superior flatness
-
9AC-10C joints utilize a traditional backer rod and caulk system, which are field applied for a complete and sealed installation
Explanation of this thing
AC-10C Documents
AC-20C Documents
Stainless Steel Column Covers
Click to enlarge
Click to enlarge

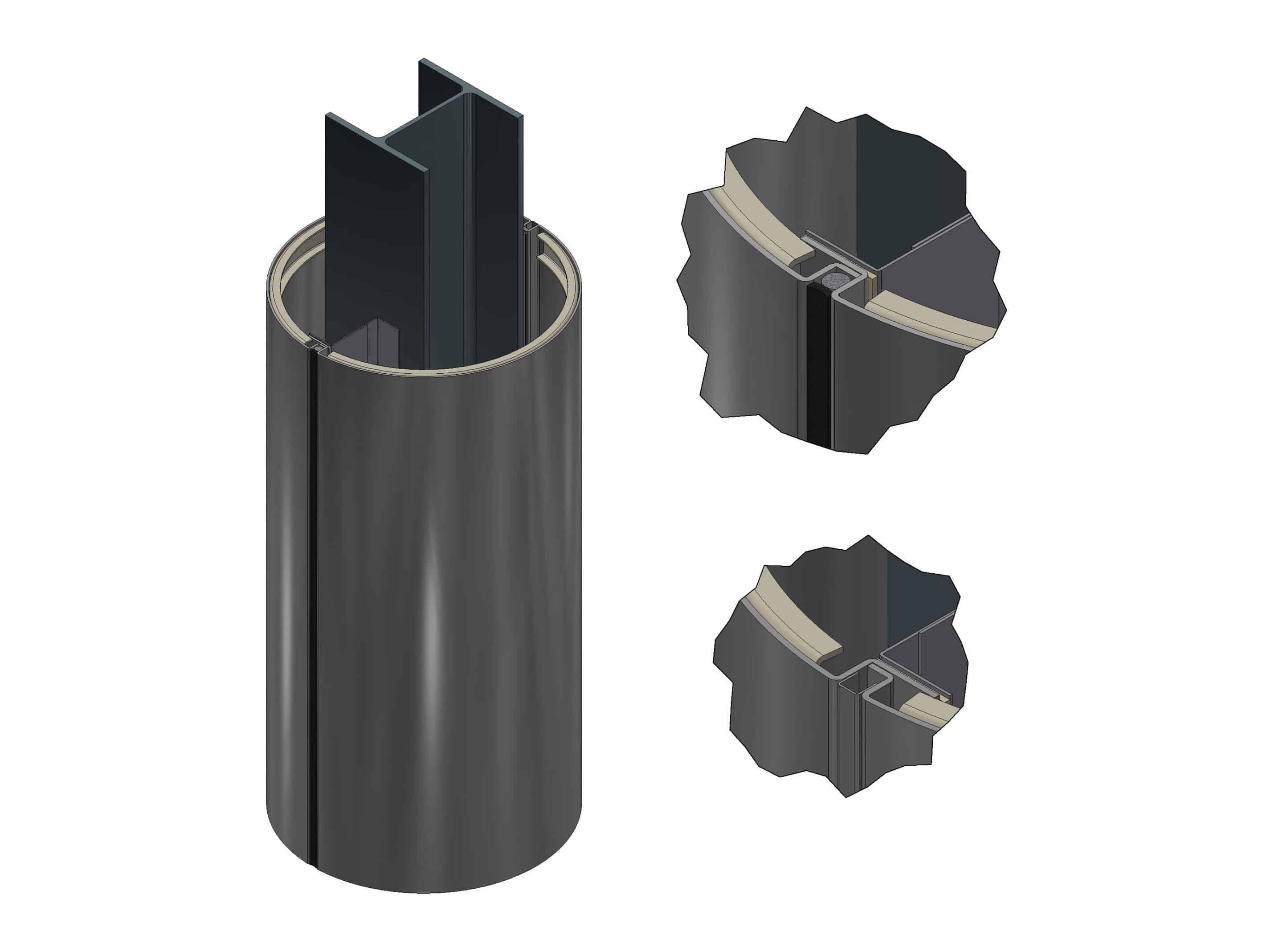

AC-10ST
Reveal Joint System

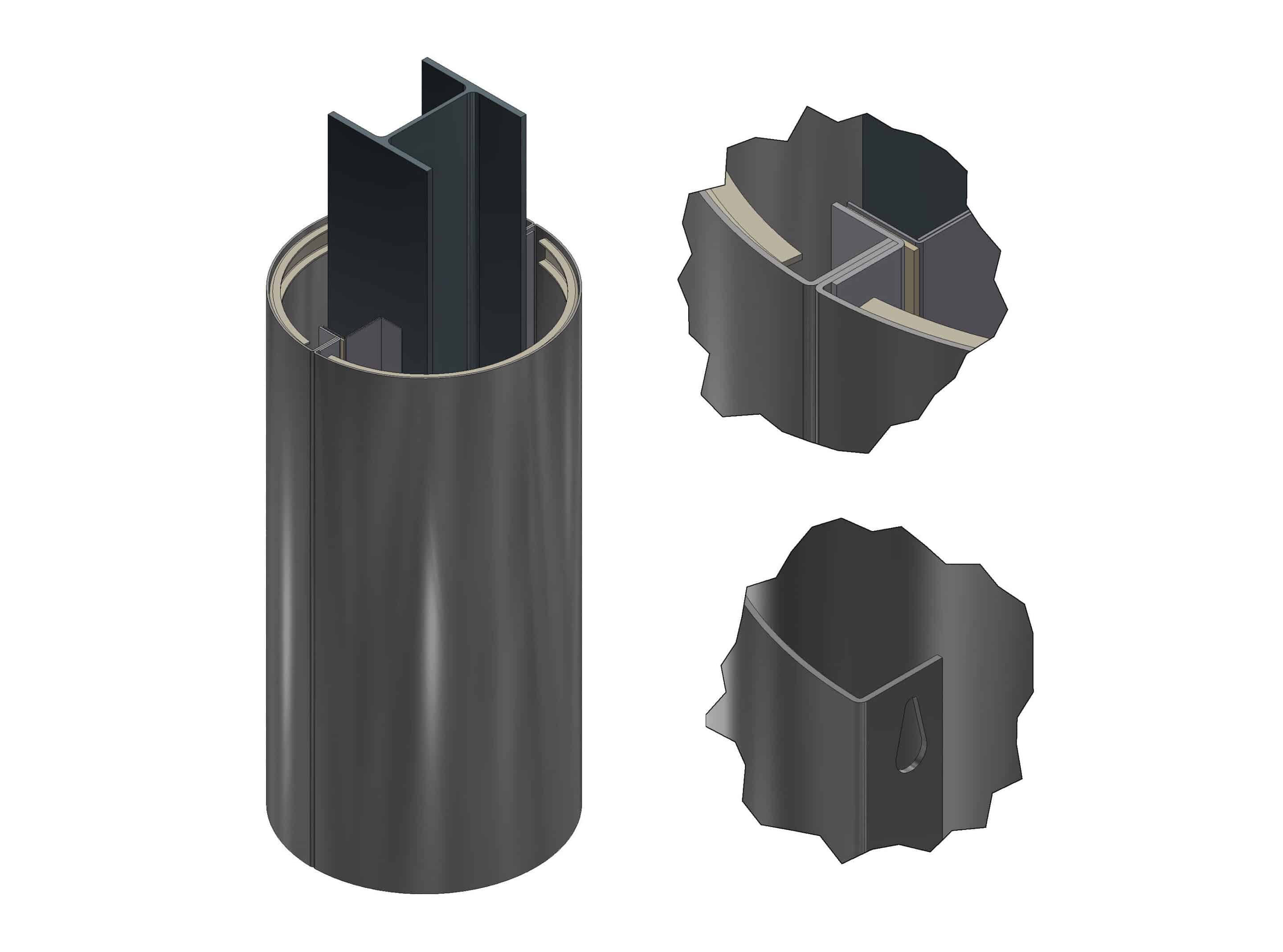

AC-20ST
Hairline Joint System
Product Description
Americlad Stainless Steel Column Covers are an excellent choice for highly durable coverage of unsightly beams in high-traffic areas. The use of stainless steel in the manufacturing of the AC-10ST and AC-20ST column covers make them an exceedingly long-lasting product.
- 9Wide variety of stainless steel finishes available
- 9Superior flatness
- 9Extreme durability, great for high traffic areas
AC-10ST Documents
AC-20ST Documents

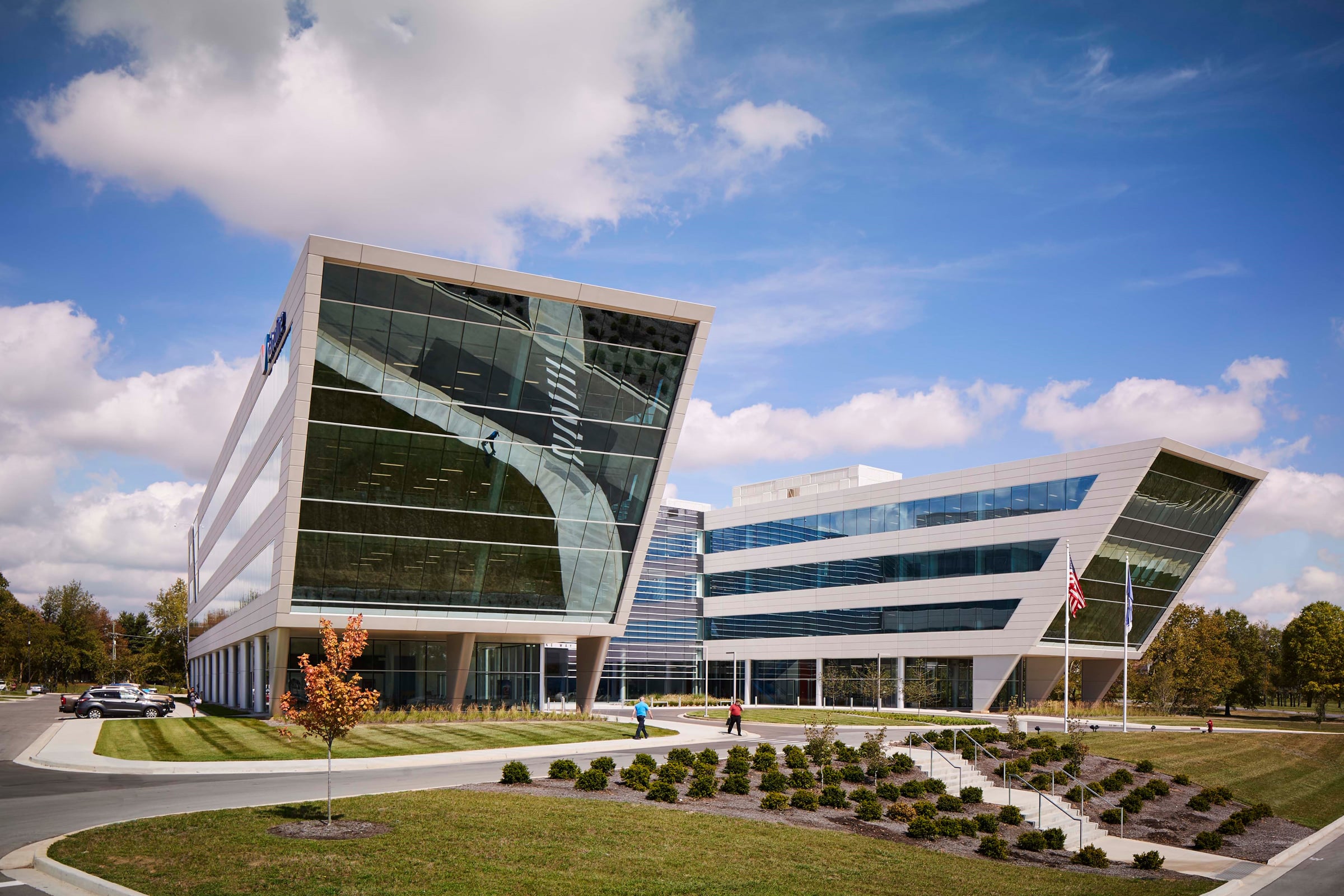

Featured Projects
