Insulated
Glaze-In Panel Systems
Use Americlad Insulated Glaze-In Panels as an alternative to glass in any curtainwall, storefront, window or spandrel application to achieve a sleek exterior aesthetic. Our single-source glazing solution can provide you with the panel system you need at a price point you’ll appreciate.
CUSTOM LAMINATED PANELS
Americlad Insulated Glaze-In Panels feature a metal skin on the interior and exterior, with various thicknesses and sizes available to accommodate your design intent. The insulating characteristics of the panels can be customized with a variety of core choices.
Aesthics
Our Insulated Glaze-In Panels offer a modern, high-performance surface for your building’s exterior, providing both superior insulation and superior style.
Installation
Every Americlad panel system is designed for ease of installation regardless of the complexity of your structure.
Flexibility
Whatever your design vision, Americlad’s Insulated Panel Systems can be modified and customized to suit your architectural and functional needs.
Product Features
Sustainability
Our AC-4000 series panel systems provide many options for achieving greater insulation and, in turn, a more sustainable structure. Panels can be fabricated to a deeper overall thickness or with stacked layers of insulated material to greatly increase R-Value ratings without modifying the existing frame.
Customization
Customize your insulated panels’ size, thickness, core material, finish, and more. Every AC-4000 series panel is available in a variety of finishes, including pre-painted, custom painted, and anodized.
Dimensions
Our insulated metal infill panels can be fabricated in a variety of custom thicknesses to achieve your desired look and level of insulation. Standard thickness offerings include our AC-4000 1” Glaze-In Insulated Architectural Panel and our AC-4200 ¼” Veneer Infill Panel.
Click to enlarge

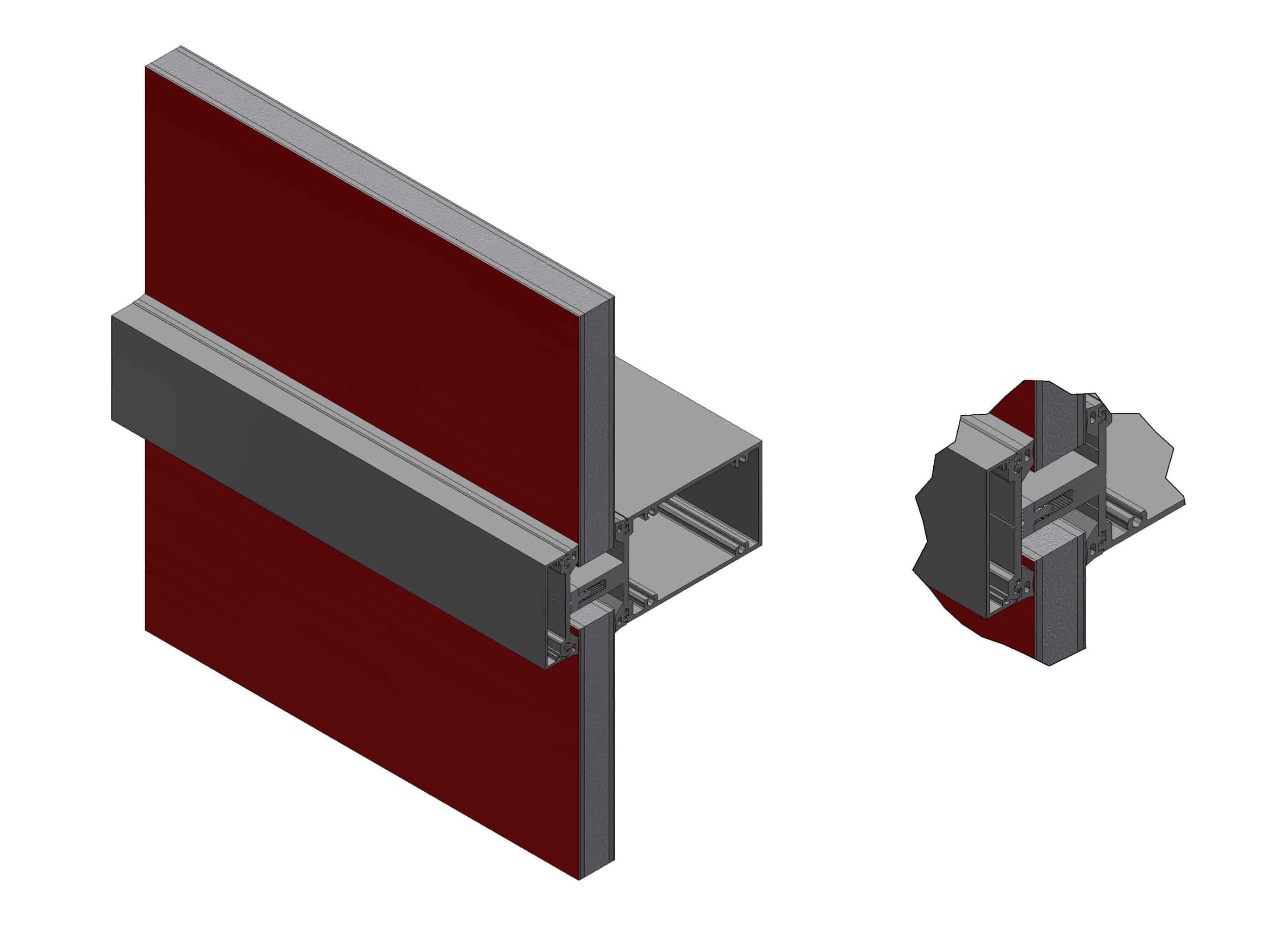

AC-4000
Product Description
The AC-4000 panel system is a 1” thick insulated panel system designed to take the place of glass lites in curtainwall and storefront systems.
Americlad® AC-4000 system features include:
- 9Various insulation types available
- 9Available with a hardboard or cement board stabilizer
- 9Available in a variety of finishes, including pre-painted, custom painted, and anodized
Click to enlarge

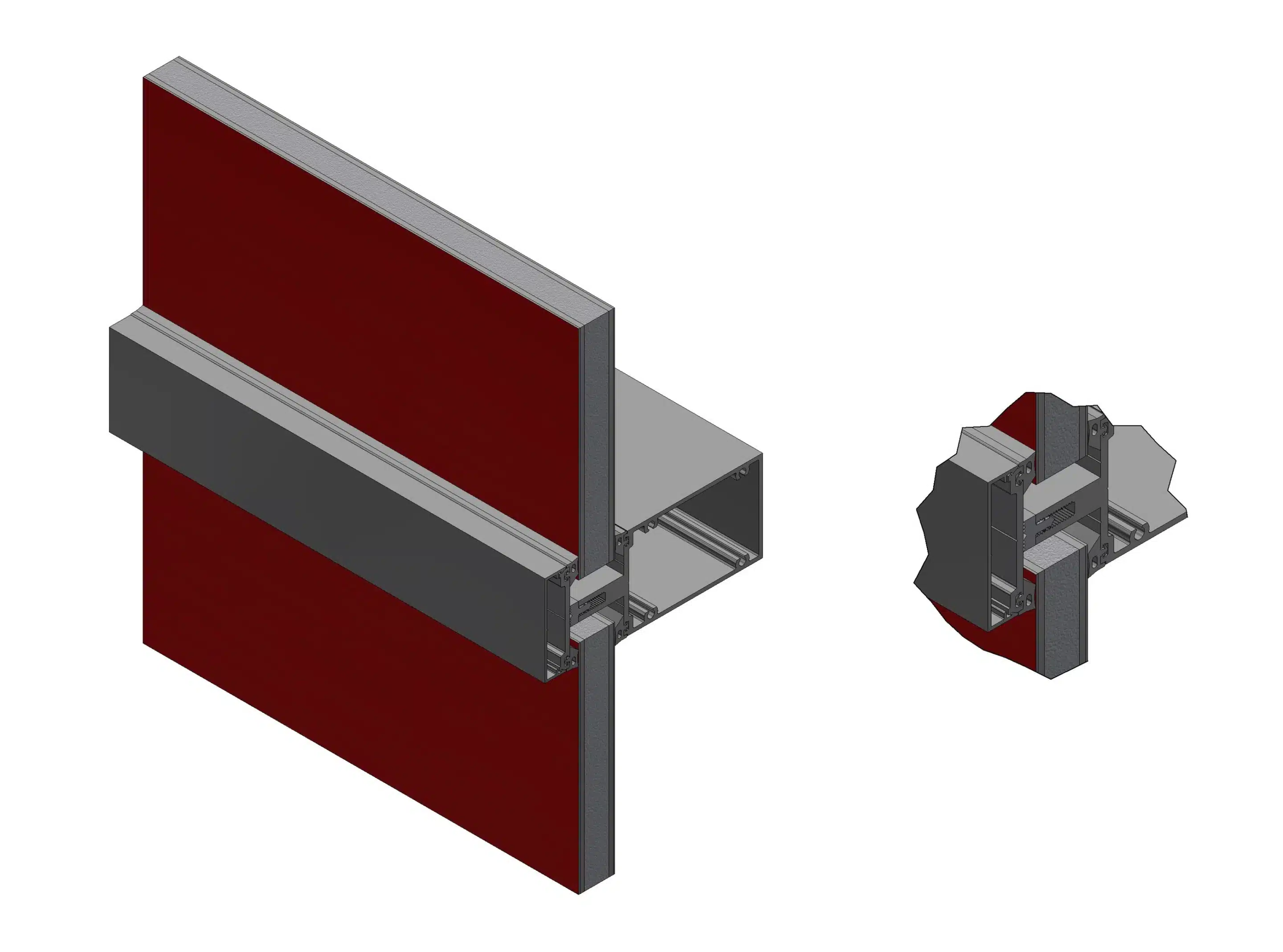

AC-4000HP
Product Description
The AC-4000HP panel system is a 1” thick insulated panel designed to take the place of glass lites in curtainwall and store front.
Americlad® AC-4000HP system features include:
- 9Florida Building Code for High Velocity Hurricane Zone and Miami-Dade Approved
- 9Various insulation types available
- 9Available in a variety of finishes, including pre-painted, custom painted, and anodized
Click to enlarge

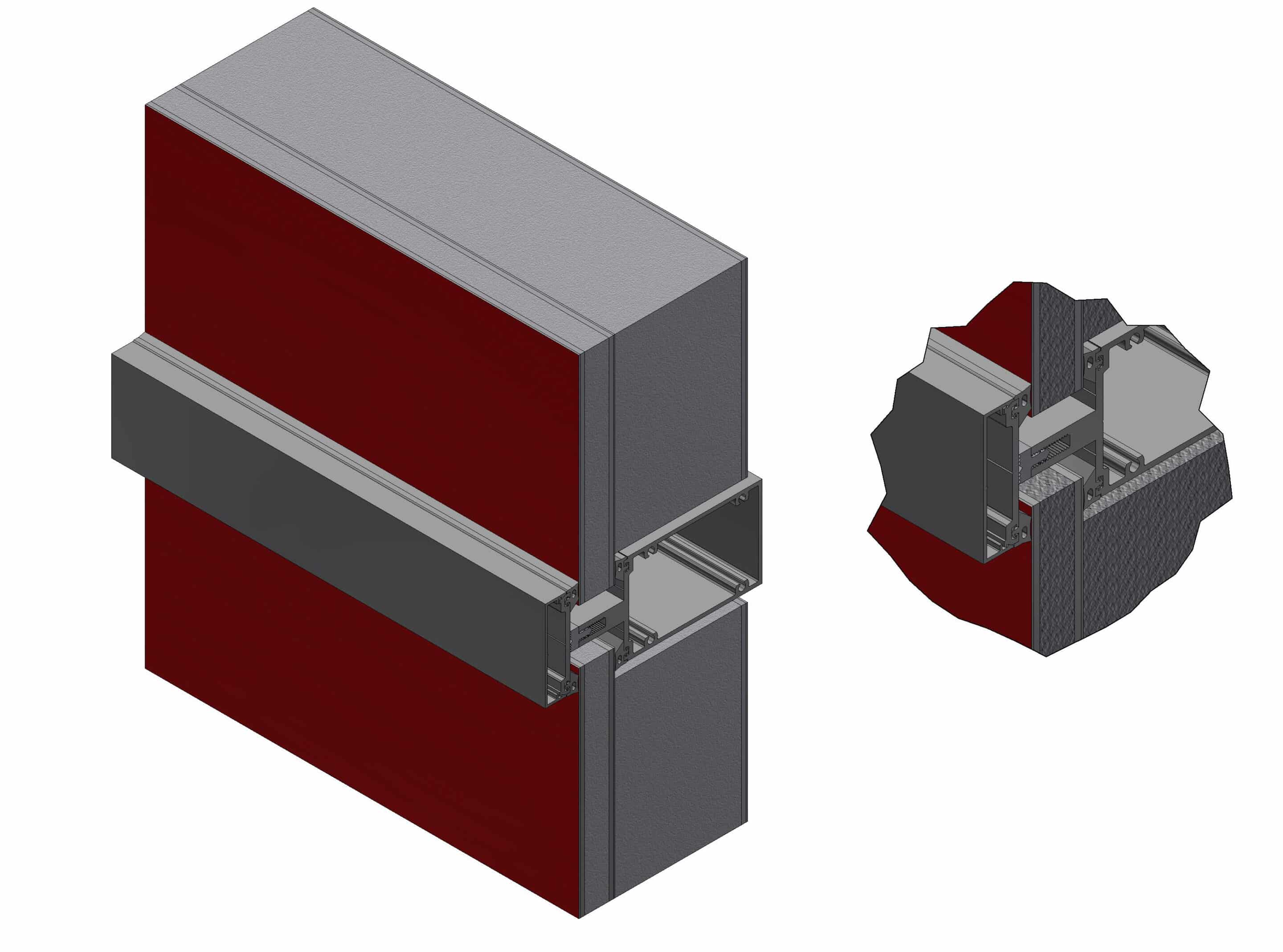

AC-4100
Product Description
The AC-4100 Americlad® Rabbet Edge Infill Panels are designed to fit any standard glazing pocket. With the ability to stack layers of insulated material, we can greatly increase R-Value ratings without modifying the existing frame.
Americlad® AC-4100 system features include:
- 9Panel can be formed to be flush with the curtain wall
- 9Panel consists of metal skins on both sides supported by stabilizers for flatness with either a Polyisocyanurate or expanded polystyrene core
- 9Available in a variety of finishes, including pre-painted, custom painted, and anodized
Click to enlarge

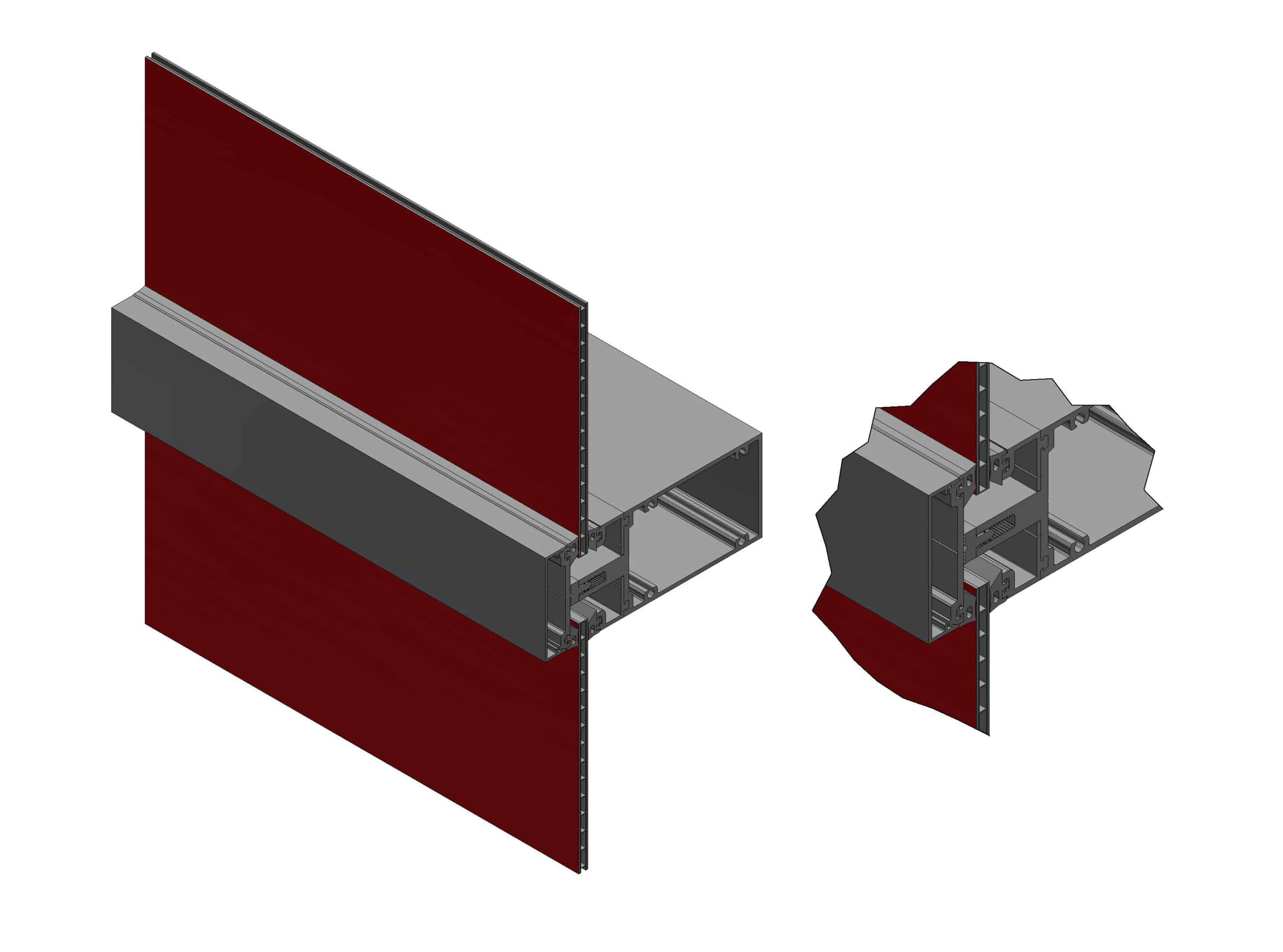

AC-4200
Product Description
The AC-4200 is a non-insulated veneer panel used in construction conditions where insulation values are not required.
Americlad® AC-4200 system features include:
- 9 Panel consists of a metal skin on both sides with a cement board or a hard board core
- 9Available in a variety of finishes, including pre-painted, custom painted, and anodized
Click to enlarge

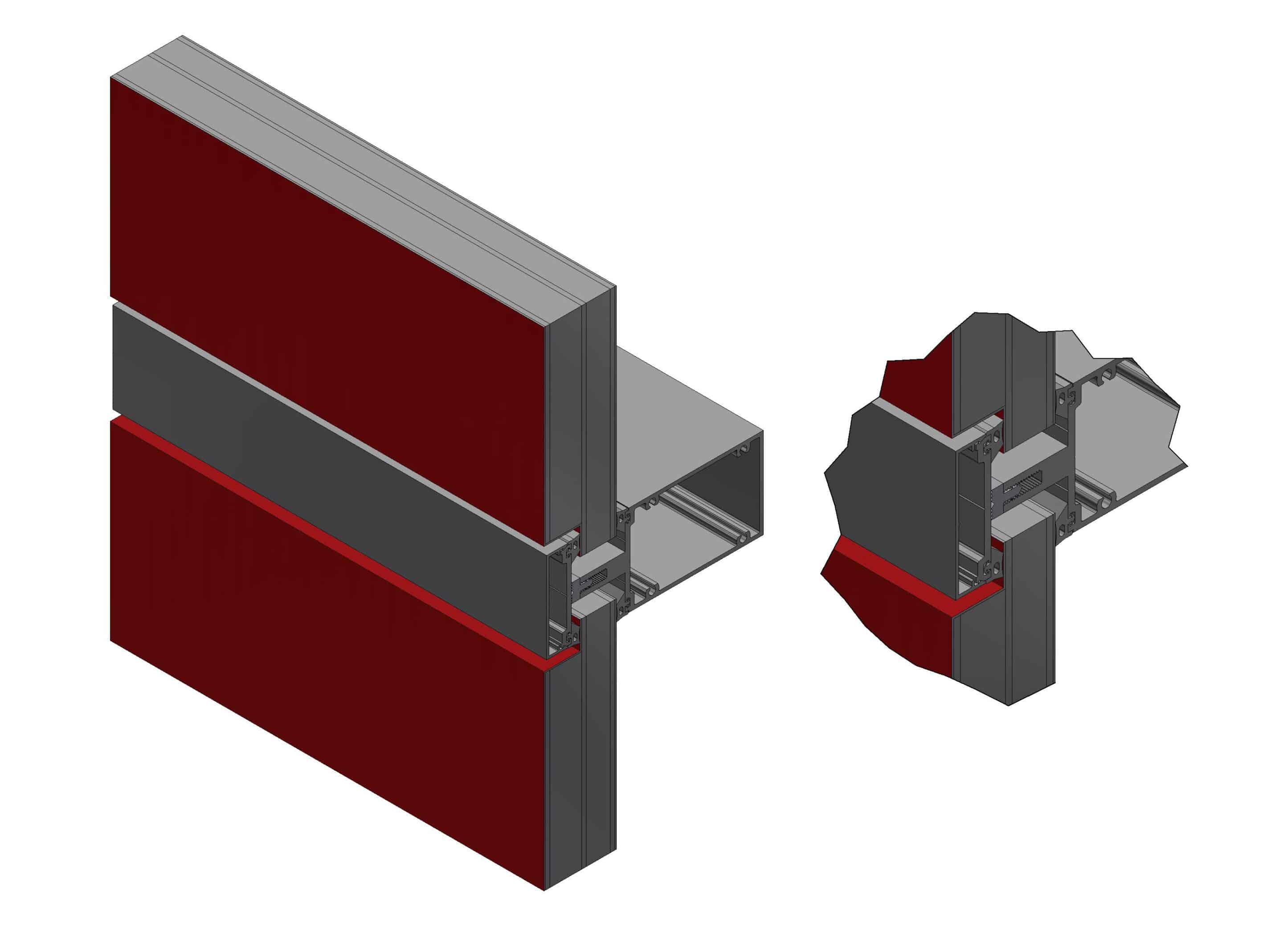

AC-4300
Product Description
The AC-4300 Flush Glaze is a 7-ply panel that can be used as an alternative to glass in any curtainwall, storefront, window, or spandrel application.
Americlad® AC-4300 system features include:
- 9Panel can be formed to be flush with the curtain wall or protrude beyond
- 9Can be fabricated to achieve deeper overall thickness for a better insulation value
- 9Panel consists of metal skins on both sides supported by stabilizers for flatness with either a polyisocyanurate or expanded polystyrene core
- 9Available in a variety of finishes, including pre-painted, custom painted, and anodized

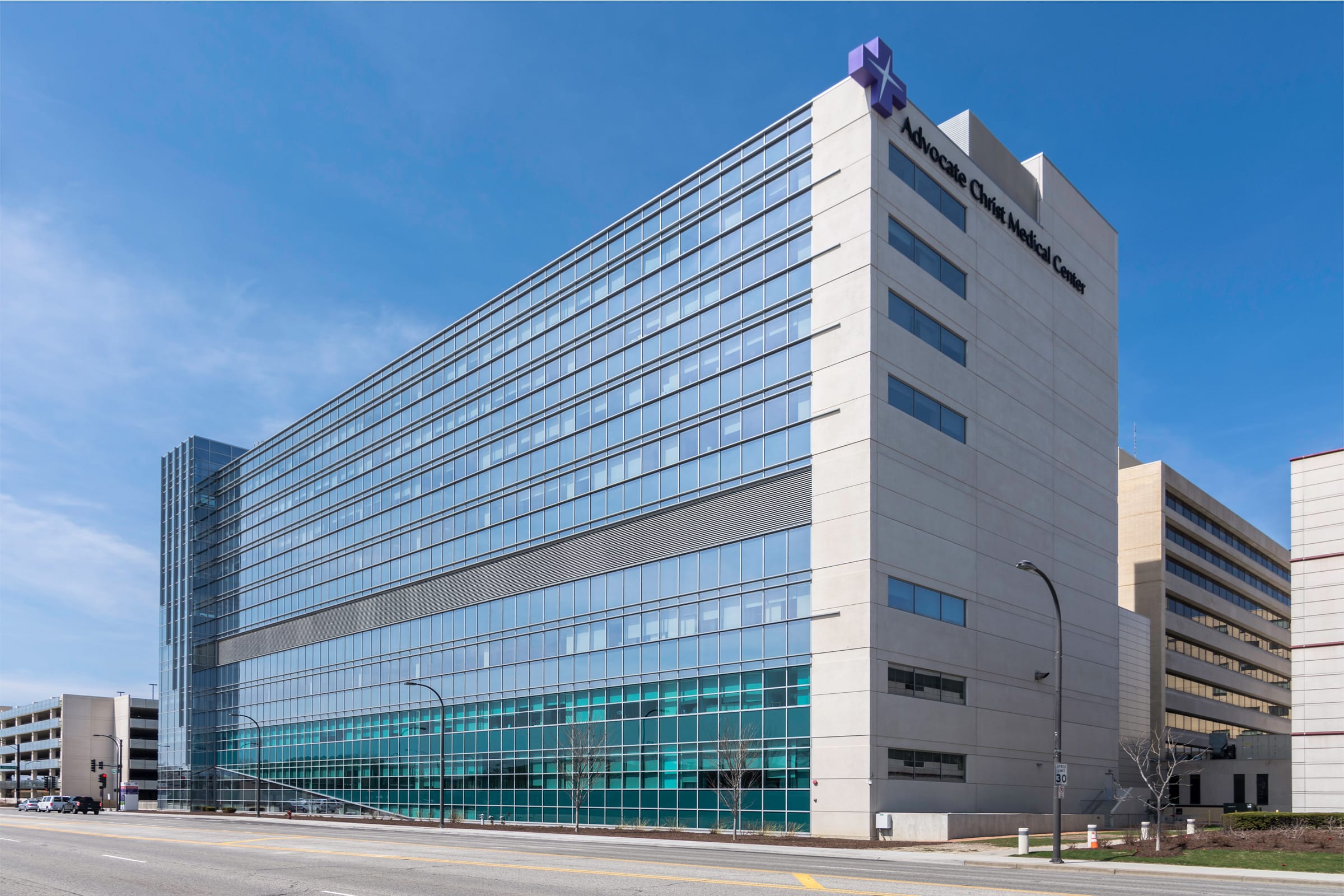

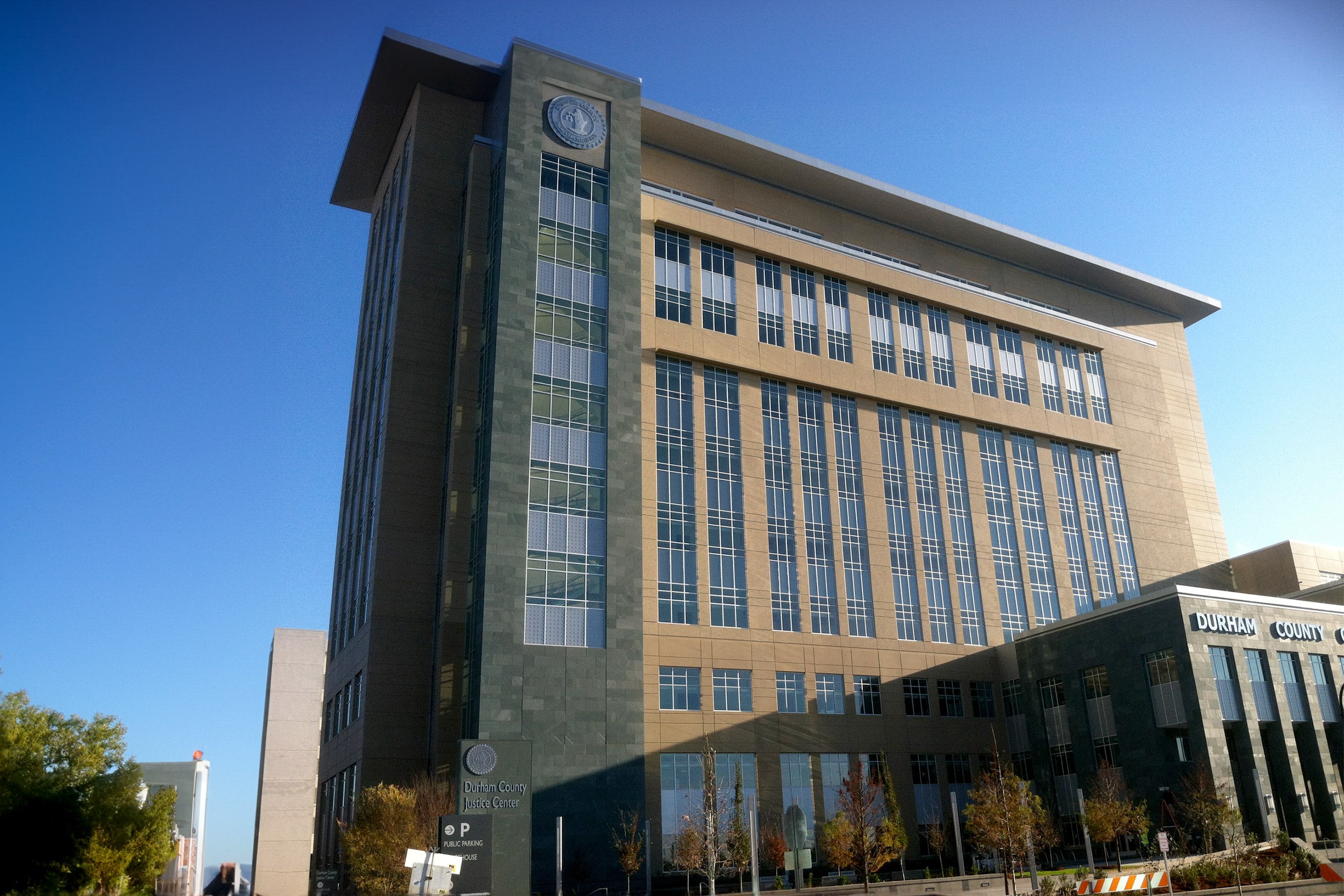

Featured Projects
See our work in action
